3D Erosion Control Blanket for Permanent Reinforcement of Grass Roots in Germany

Revolutionize Slope Stabilization with Advanced 3D Geotextile Technology

In the demanding environmental conditions of Germany, where effective erosion control meets stringent ecological standards, our 3D erosion control blanket represents a breakthrough in permanent vegetation reinforcement solutions. This innovative geotextile technology provides immediate protection while establishing long-term stability for slope surfaces throughout Germany's diverse landscapes.



What is a 3D Erosion Control Blanket?

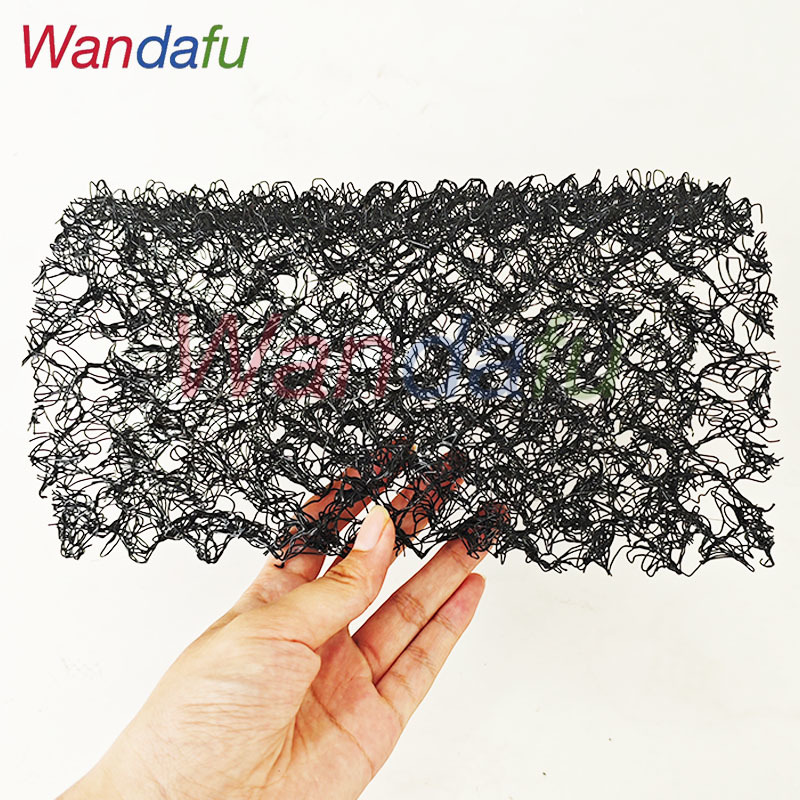

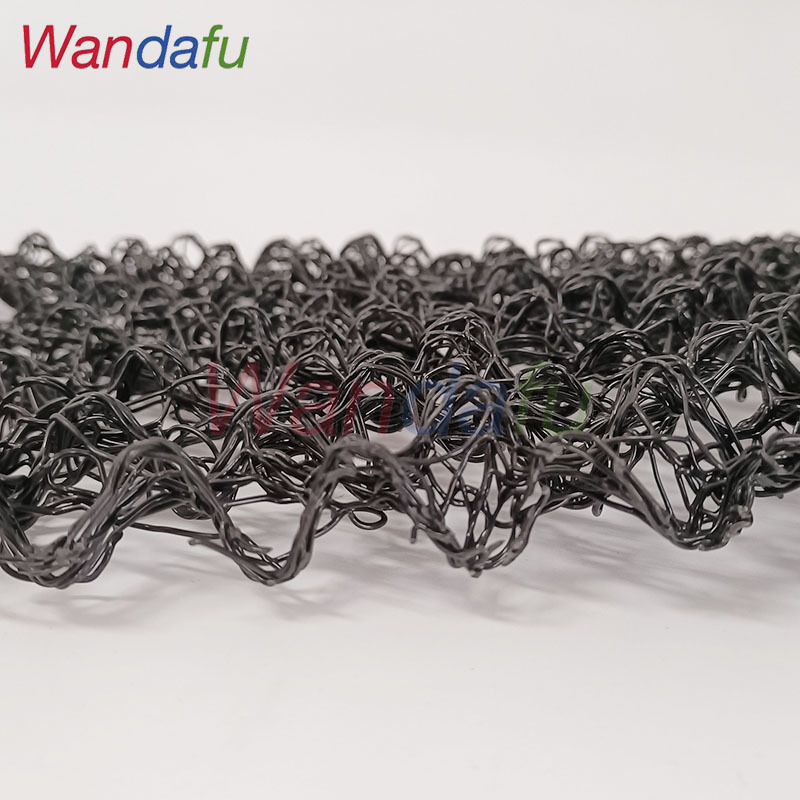

Our 3D erosion control blanket (also known as flexible ecological protection mat, three-dimensional soil conservation mat, or polyamide geotextile) is an advanced open-type 3D flexible ecological material specifically engineered for slope stabilization and vegetation establishment. Manufactured from premium polyamide (PA6) through a specialized dry-drawing process, this innovative system creates the ideal environment for grass root development while providing immediate and permanent protection against soil erosion.

Key Technical Specifications

• Material: Premium Polyamide (PA6) - chemically inert and environmentally neutral

• Thickness Options: 6mm to 20mm (custom sizes available)

• Mesh Porosity: ≥95% - optimal for seed germination and root development

• Tensile Strength: 2.2/1.6 KN/m (longitudinal/transverse)

• Chemical Resistance: Excellent resistance to acids, alkalis, and environmental contaminants

• UV Resistance: Superior anti-aging and ultraviolet protection properties

• Design Life: 50+ years of reliable performance

• Flow Rate Resistance: Withstands water velocities of 3-7 m/s when vegetated

Superior Advantages for German Environmental Conditions

1. Enhanced Vegetation Establishment

The unique three-dimensional open structure creates an optimal micro-environment for seed germination and root development. The high porosity (≥95%) allows for excellent water retention and air exchange while providing immediate protection for emerging vegetation.

2. Immediate and Permanent Erosion Protection

Before vegetation establishment: Provides exceptional soil retention and surface stabilization
After vegetation establishment: Integrates with root systems to form a permanent composite structure that resists hydraulic forces and soil movement

3. Exceptional Hydraulic Performance

The three-dimensional texture creates micro-turbulence that dissipates hydraulic energy, effectively reducing flow velocity and preventing surface scour even during heavy rainfall events common in German climate conditions.

4. Environmental Compatibility

Made from chemically inert polyamide that poses no risk to soil or water quality
Non-toxic and resistant to microbial degradation
Does not attract rodents or wildlife

5. Cost-Effective Installation

Lightweight and flexible design accommodates complex terrain
Simple installation process reduces labor requirements and equipment costs
Minimal maintenance requirements over its 50-year service life

Primary Applications in Germany

1. Transportation Infrastructure

• Highway and railway embankment protection

• Roadside slope stabilization

• Cut and fill slope reinforcement

2. Watercourse Protection

• Riverbank and channel stabilization

• Shoreline protection works

• Flood defense systems

3. Construction and Development Sites

• Temporary and permanent slope protection during construction

• Site run-off management

• Land reclamation projects

4. Ecological Restoration

• Habitat creation and restoration

• Landscape beautification

• Green roof systems

5. Specialized Applications

• Reinforcement of drainage channels

• Landfill cap protection

• Golf course and sports field construction



Installation Guidelines for Optimal Performance

Site Preparation

1. Grade and smooth the subsoil surface

2. Remove sharp objects and debris

3. Ensure proper surface compaction

Blanket Installation

1. Unroll blanket smoothly across prepared surface

2. Secure edges with 8-gauge anchor pins at 1-meter intervals

3. Secure field area with pins at 2-meter intervals

4. Overlap adjacent rolls by 5cm with upstream edge over downstream edge

5. Secure overlap seams with pins at 1-meter intervals

Vegetation Establishment

1. Hydroseed or manually seed before or after installation

2. Apply appropriate fertilizer and soil amendments

3. Maintain adequate moisture for germination and establishment

Why Choose Our 3D Erosion Control Blankets for German Projects?

Technical Superiority

• Manufactured to meet German quality standards and environmental regulations

• Customizable specifications for project-specific requirements

• Proven performance in diverse climatic conditions throughout Germany

Environmental Compliance

• Fully compliant with German water protection laws (WHG)

• Meets EU environmental standards and directives

• Certified for use in sensitive ecological areas

Technical Support

• Project-specific engineering support

• Installation supervision available

• Comprehensive technical documentation

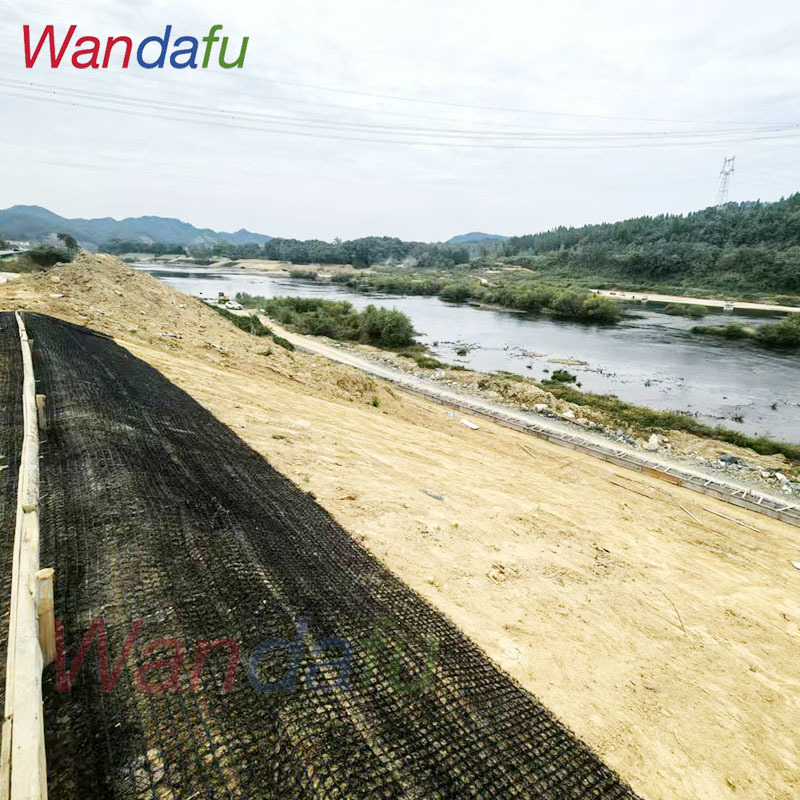

Case Study: Successful Application in Rhine River Bank Stabilization

A recent project along the Rhine River implemented our 3D erosion control blanket for bank stabilization. The results demonstrated:

• 98% vegetation establishment within 6 weeks

• Zero soil loss during significant flood events

• 40% cost savings compared to traditional hard engineering solutions

• Successful integration with native vegetation

• Compliance with all German environmental regulations

Frequently Asked Questions

Q: How does your 3D erosion control blanket compare to traditional erosion control methods?
A: Our system provides immediate protection while promoting vegetation establishment, creating a permanent, sustainable solution that outperforms hard engineering approaches both environmentally and economically.

Q: What is the typical lifespan of your system?
A: The polyamide material maintains structural integrity for 50+ years, providing permanent reinforcement that actually improves with time as vegetation becomes established.

Q: Can your system be used in aquatic environments?
A: Yes, the material is specifically engineered to withstand saturated conditions and flowing water while providing immediate protection before vegetation becomes established.

Q: Do you provide custom sizes for specific projects?
A: Absolutely. We manufacture custom dimensions to meet exact project specifications, ensuring optimal performance and cost efficiency.

Q: How does your product comply with German environmental regulations?
A: Our material is manufactured to meet all relevant German and EU environmental standards, including water protection regulations and ecological requirements.

Partner with Us for Your Next Project

When you choose our 3D erosion control solutions, you receive more than just products—you gain a partnership with technical experts committed to your project's success. We provide:

• Comprehensive technical specifications and testing data

• Project design support and installation guidance

• Competitive pricing and reliable delivery throughout Germany

• Ongoing technical support throughout project implementation

Take the Next Step Toward Sustainable Slope Stabilization

Ready to implement the most advanced erosion control technology for your German projects? Contact our technical team today to discuss your specific requirements and request project-specific documentation.

[Contact Us Today] for technical specifications, pricing information, and sample requests tailored to your project needs.
