3D Reinforced Geomat for Slope Stabilization: How to Reduce Erosion by 80% in Civil Projects

Release time:

2025-06-13

Civil engineers worldwide face a $10 billion annual challenge from soil erosion. Traditional solutions like riprap and concrete retaining walls often fail to provide sustainable, cost-effective protection. Enter 3D Reinforced Geomat - the advanced geosynthetic technology reducing erosion rates by 80% while cutting project costs by 30-50%.

Introduction: The Engineering Breakthrough in Erosion Control

Civil engineers worldwide face a $10 billion annual challenge from soil erosion. Traditional solutions like riprap and concrete retaining walls often fail to provide sustainable, cost-effective protection. Enter 3D Reinforced Geomat - the advanced geosynthetic technology reducing erosion rates by 80% while cutting project costs by 30-50%.

This comprehensive guide examines why leading contractors are switching to 3D Geomat for critical infrastructure projects, from highway embankments to coastal protection systems.

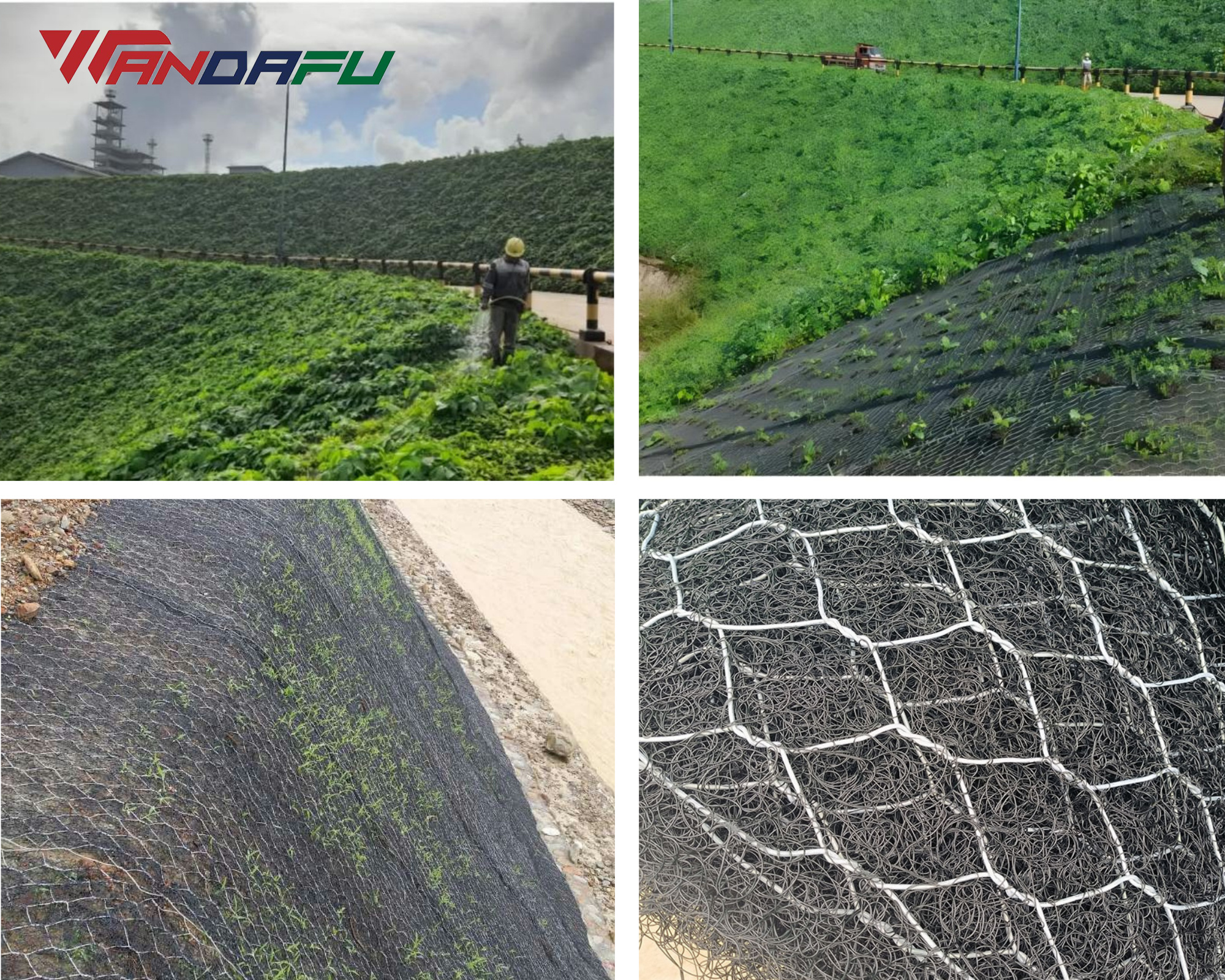

3D Reinforced Geomat

Technical Superiority of 3D Reinforced Geomat

1. Advanced Material Composition

Our 3D Geomat combines:

High-tensile PET/PP polymer mesh (50-80kN/m strength)
Galvanized steel wire reinforcement (optional for high-load applications)
UV-stabilized formulation for 10+ year service life

Key Benefits:
✔ 3x greater tensile strength than conventional geotextiles
✔ Complete resistance to biological degradation
✔ Maintains flexibility in extreme temperatures (-30°C to +80°C)

2. Innovative 3D Structure

The patented three-dimensional design features:

20-30mm profile depth for optimal soil retention
Multi-directional fiber orientation distributing stress evenly
90%+ void ratio enabling natural vegetation growth

Performance Advantages:

45% better load distribution than 2D geogrids
60% faster vegetation establishment
Permeability exceeding 5×10⁻³ m/s

Proven Applications & Case Studies

Slope Stabilization Solutions

Problem: 1:1.5 highway embankments losing 15cm/year
Solution:

25mm 3D Geomat with 10cm overlap
Hydraulic seeding with erosion-control mulch
Results:
82% reduction in surface erosion (measured over 3 years)
40% lower maintenance costs vs. riprap

Riverbank Protection Systems

Project: Yangtze River tributary restoration
Specifications:

30mm reinforced composite geomat
Anchored with 600mm steel staples
Outcomes:
Withstood 4.2m/s flow velocity during flood season
Natural vegetation coverage reached 85% in 8 months

Installation Protocol for Maximum Effectiveness

Step-by-Step Implementation

Surface Preparation
- Grade slope to ≤45° angle
- Remove debris >50mm diameter
Material Deployment
- Unroll geomat top-to-bottom
- Maintain 5% tension during placement
- Overlap edges 10-15cm
Anchoring System
- U-shaped steel pins (every 1m²)
- Perimeter trench anchorage (depth ≥30cm)
Infilling Process
- 15cm native soil layer
- Seed mixture application (200g/m²)

Cost-Benefit Analysis

Solution	Material Cost	Installation Time	5-Year Maintenance
3D Geomat	$3.2/m²	15 man-hrs/100m²	$120/100m²
Concrete	$18.5/m²	45 man-hrs/100m²	$650/100m²
Riprap	$9.8/m²	32 man-hrs/100m²	$420/100m²

Why Global Engineering Firms Choose Our Solution

Certified Performance: Complies with ASTM D7106, EN 13249
Custom Engineering Support: Site-specific design services
Project Financing Available: Lease-to-own options for large contracts
Global Logistics: Container-load optimization (5000m²/40HQ)

Limited Offer: Request your free engineering evaluation kit - includes material samples, technical specifications, and project ROI calculator.

Contact our geotechnical experts today to discuss how 3D Geomat can solve your most challenging erosion problems.
