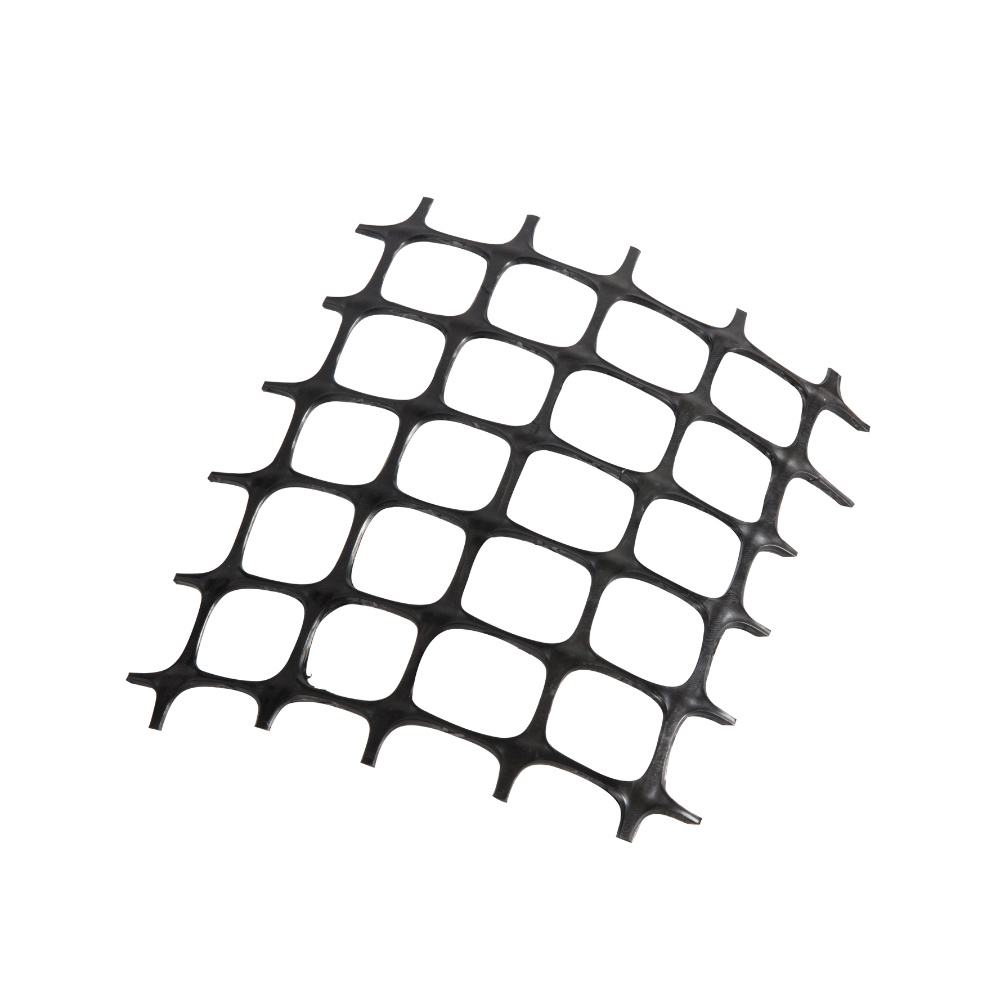

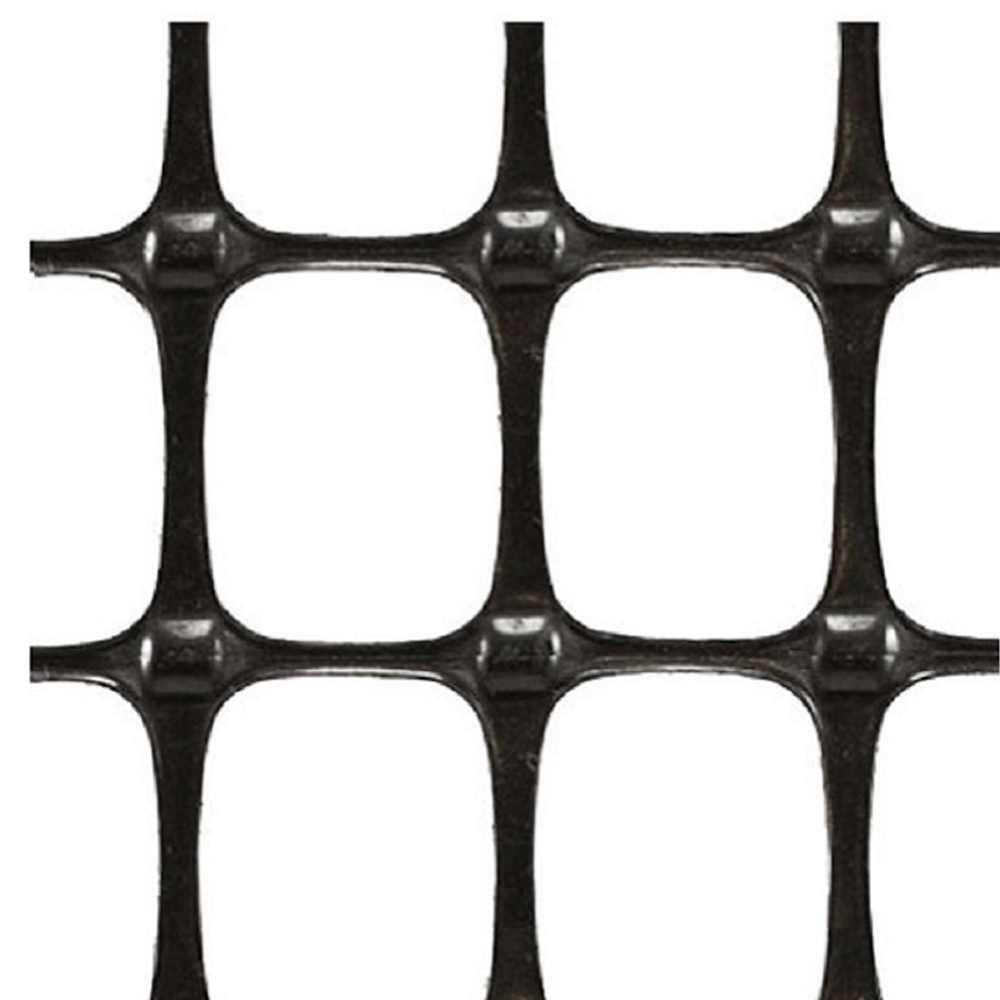

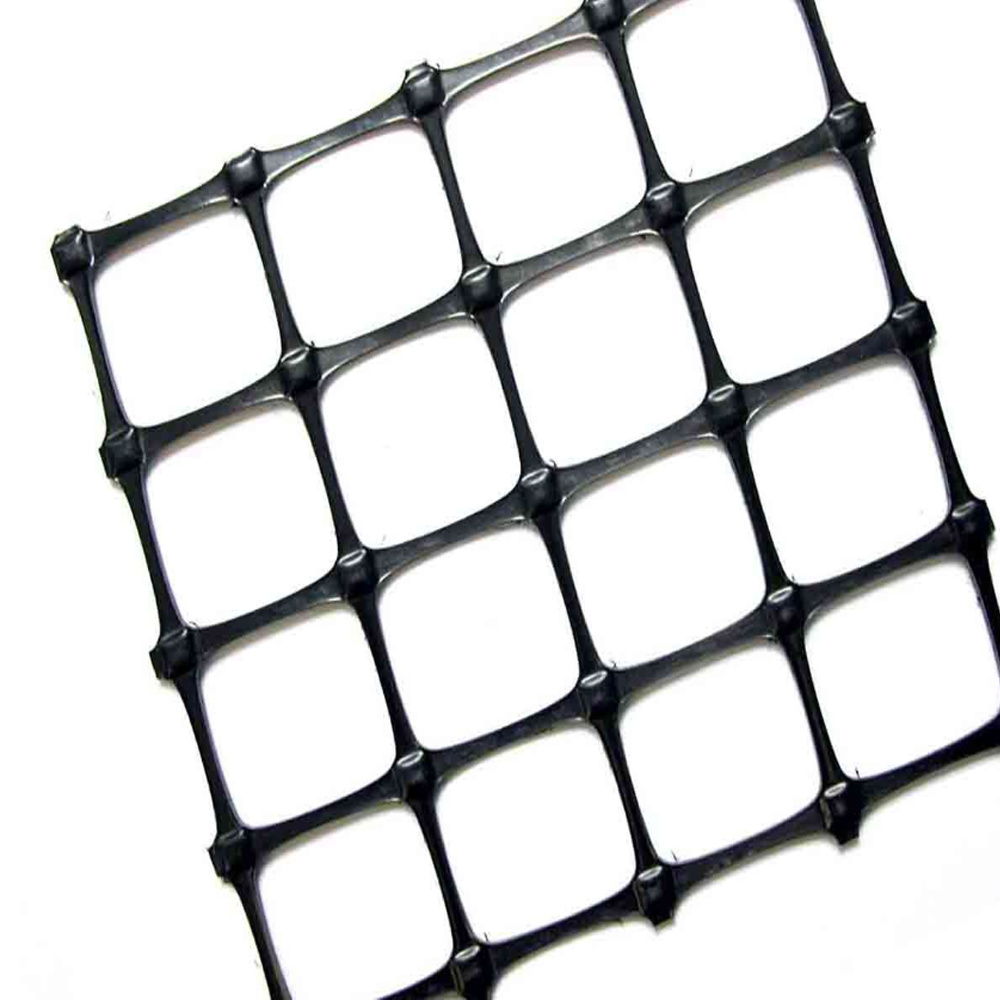

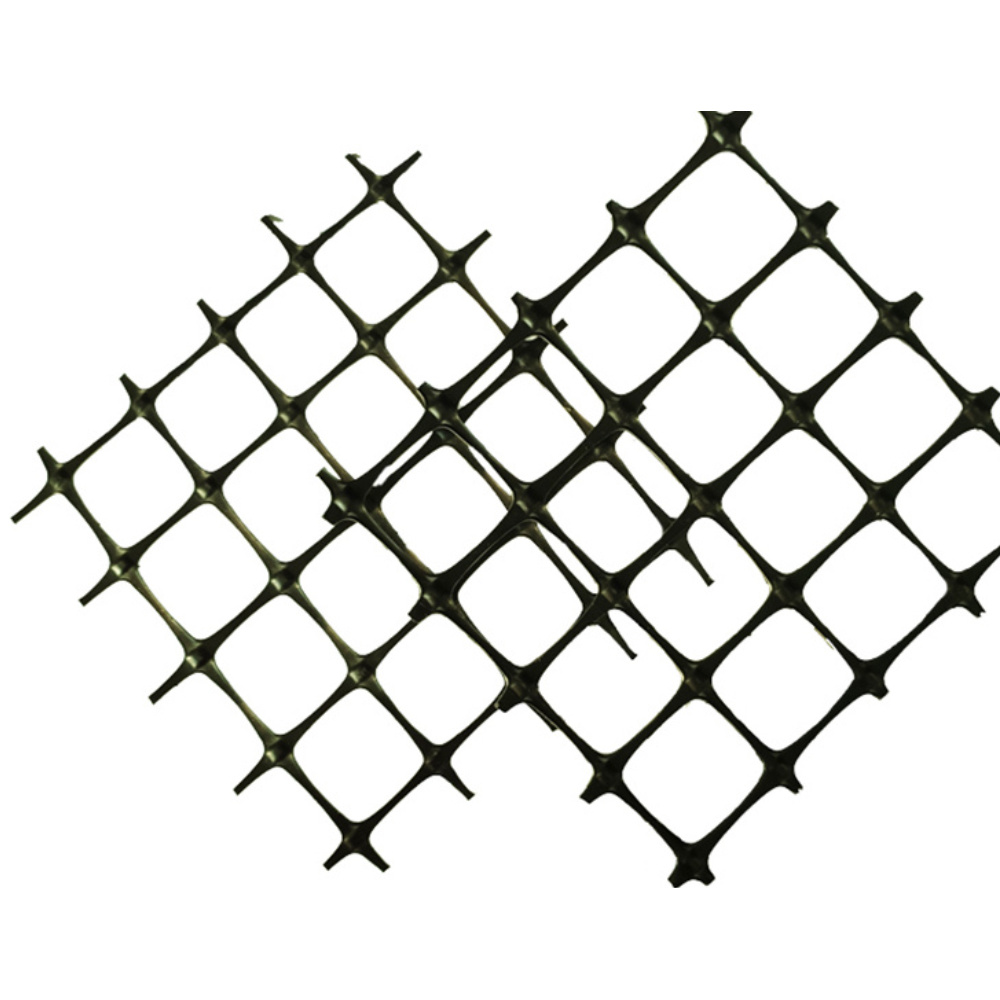

PP Biaxial Geogrid 20kn 30kn 40kn for Soil Reinforcement

PP Biaxial Geogrid 20kn 30kn 40kn for Soil Reinforcement

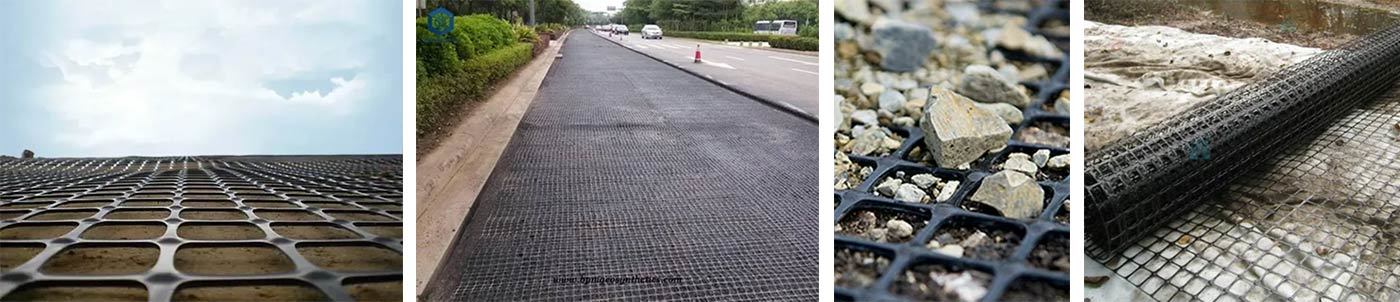

Manufactured from PP,it is produced through the process of extruding,punching,heating,longitudinal and transverse stretching.It has high tensile strength in warp and weft directions.Mainly applied in strengthening soft ground of railway,highway,slope protecting projects,airfields and foundation reinforcement.It can increase stability and loading capacity of fundus,prolong the project life.

Subclassification：

PP Biaxial Geogrid

Key words：

PP Biaxial Geogrid

Email：

wdf001@wdfgeomat.com

WhatsApp：

+8617863869299

•High Tear Strength
•Flexible and durable
•Excellent Creep Resistance
•UV resistance
•Cost effective
•High chemical and biological resistance
•High Tensile Strength and Low Elgongation
•Optimun stability of the junction strength of the grid
•Increased pull-out resistance and compound strength
•High resistance to installation damage and ease of installation

Item	Test Method	Unit	PBX1515		PBX2020		PBX3030		PBX4040		PBX5050
Item	Test Method	Unit	MD	TD	MD	TD	MD	TD	MD	TD	MD	TD
Polymer	-	-	PP
Minimum Carbon Black	ASTM D 4218	%	2
Tensile Strength	ASTM D 6637	kN/m	15	15	20	20	30	30	40	40	50	50
Tensile Strength @ 2% Strain	ASTM D 6637	kN/m	5	5	7	7	10.5	10.5	14	14	17.5	17.5
Tensile Strength @ 5% Strain	ASTM D 6637	kN/m	10.5	10.5	14	14	21	21	28	28	35	35
Elongation	ASTM D 6637	%	13	13	13	13	13	13	13	13	13	13
Junction Efficiency	GRI GG2	%	93	93	93	93	93	93	93	93	93	93
Flexural Rigidity	ASTM D 7748	mg-cm	250,000		750,000		2,000,000		4,800,000		8,000,000
Aperture Stability	ASTM D 7864	m-N/deg	0.32		0.50		0.75		0.98		1.10
Aperture Size	-	mm	38	38	38	38	36	36	35	35	33	33
Roll Width	-	m	3.95 or 5.95
Roll Length	-	m	50

Notes MD = Machine Direction; TD = Transverse Direction
