50mm 75mm 100mm Plastic HDPE Geocell Gravel Stabilizer Grid Paver Slope Soil Protection

50mm 75mm 100mm Plastic HDPE Geocell Gravel Stabilizer Grid Paver Slope Soil Protection

HDPE Geocell Material; HDPE Specifications; TGLG-50-400, TGLG-100-400, TGLG-150-400, TGLG-200-400(Support for special size customization)

Subclassification：

HDPE Geocell

Key words：

HDPE Geocell

Email：

WhatsApp：

Product Details

Geocell is bolstered by using excessive depth HDPE broadband, after the effective welding face to emerge as a reticular lattice room structure. It retractile,transportation can decrease fold terrific to,when the use of ,open and filling earth-rock,or concrete materials,constitute has strong lateral restrictions and taking tiers buildings ,it can be used as a cushion,dealing with vulnerable basis bearing ability , additionally can be laid on slope floor slope safety shape constitute, nevertheless can be used to construct keeping structures,etc

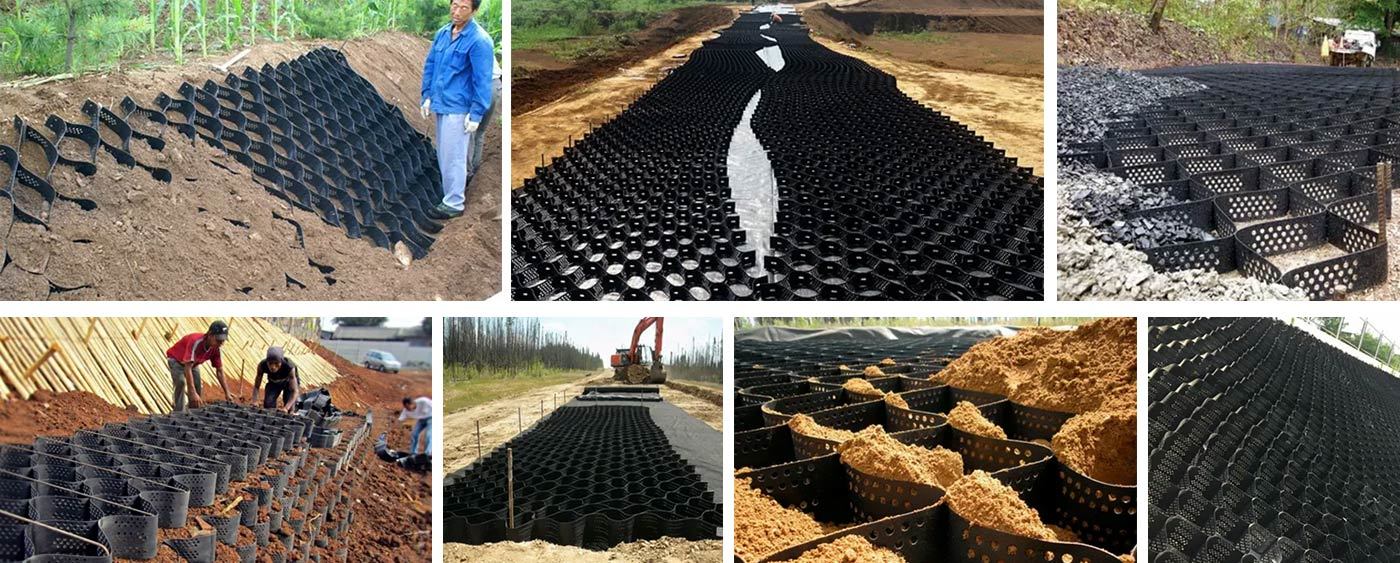

A.Solid railway roadbed

B.Highway's tender foundation

C.Withstand truck pressure embankments,retaining wall

D.Running shallow river

E.Pipeline and the sewer's help structure

F.To stop landslides and load pressure with the aid of the hybrid wall

G.To use impartial wall ,wharf ,breakwater and so on

H.To govern the desert, seashores and the riverbed , banks

Item Model	Height (mm)	Welding distance(mm)	Sheet thickness(mm)		Seam peel strength≥(N)	Expanded Cell Size(mm)	Expanded panel size (m)
Item Model	Height (mm)	Welding distance(mm)	smooth	textured	Seam peel strength≥(N)	Expanded Cell Size(mm)	Expanded panel size (m)
TGLG-100-330	100	330	1.1	1.5	1420	244X203	2.44X6.15
TGLG-150-330	150				2130	244X203	2.44X6.15
TGLG-200-330	200				2840	244X203	2.44X6.15
TGLG-100-356	100	356	1.1	1.5	1420	259X224	2.56X6.52
TGLG-150-356	150				2130	259X224	2.56X6.52
TGLG-200-356	200				2840	259X224	2.56X6.52
TGLG-100-400	100	400	1.1	1.5	1420	295X250	4X5
TGLG-150-400	150				2130	295X250	4X5
TGLG-200-400	200				2840	295X250	4X5
TGLG-100-445	100	445	1.1	1.5	1420	320X287	2.56X8.35
TGLG-150-445	150				2130	320X287	2.56X8.35
TGLG-200-445	200				2840	320X287	2.56X8.35
TGLG-100-660	100	660	1.1	1.5	1420	488X406	2.44X12.29
TGLG-150-660	150				2130	488X406	2.44X12.29
TGLG-200-660	200				2840	488X406	2.44X12.29
TGLG-100-712	100	712	1.1	1.5	1420	508X475	2.56X13.72
TGLG-150-712	150				2130	508X475	2.56X13.72
TGLG-200-712	200				2840	508X475	2.56X13.72
